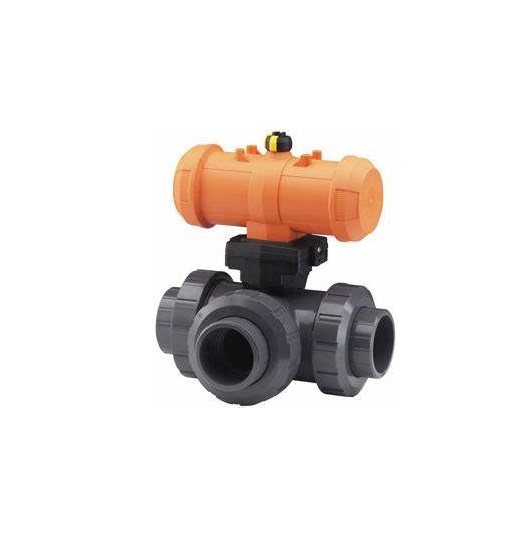

Type 230-233 Georg Fischer Pneumatically Actuated Ball Valve Type 230-233

Type 230-233 Georg Fischer Pneumatically Actuated Ball Valve Type 230-233

Product Description:

The Type 230-233 Ball Valve shall be used in either open/close or modulating applications. The actuator shall be a PA11-45 depending on valve size. The ball valve shall be true union and utilize a floating ball design. The ball shall be fully molded and full port with two way blocking capability. The stem shall be blowout proof, utilizing a double o-ring seal and a predetermined break point opposite the media side of the stem seals. The seat carrier shall be adjustable and reverse threaded.

Features:

General

• Size: ⅜”–4”
• Material: PVC, CPVC, PROGEF® Standard PP, ABS, SYGEF® Standard PVDF
• Seat: PTFE
• Seals: EPDM, FKM
• End Connection: Solvent cement socket, threaded, flanged, fusion spigot, fusion socket
• Actuator Housing ⅜”–2”: Glass-filled PP
• Actuator Housing 2½”–4”: Anodized aluminum
• Manual Override ⅜”–2”: Standard versions with and without
• Stroke Limiter 2½”-4”: Integrated, ±10°
• Mounting: Stainless steel threaded inserts
• Action: Fail open, fail closed, and double acting
• Position Indicator: Optical, integrated

Optional Features

• Pilot Valve: 24VAC/DC, 110VAC, 230VAC
• Positioner: Digital electro-pneumatic
• Limit Switches: Mechanical, inductive
• Actuator Housing: Alternative materials available upon request
• Manual Override 2½”-4”: Declutchable
• Stroke Limiter ⅜”-2”: ±45°
• Manual Loading Station: Local control box
• Seals: Alternative materials available upon request
• Seat: PVDF • End Connection: Alternatives available upon request
• Control Ball: For throttling applications available ⅜”-2”
• Vented Ball: For sodium hypochlorite use
• Cleaned: Silicone free/oil free
