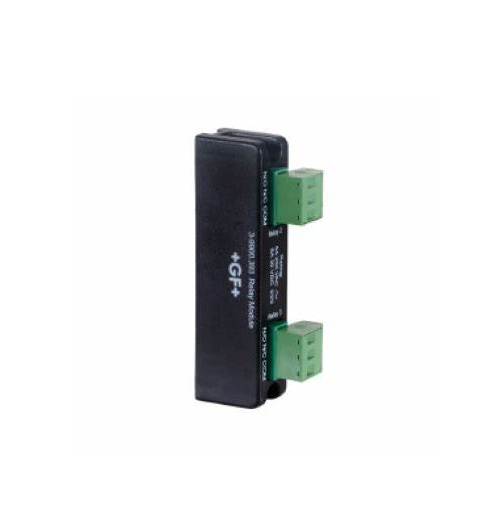

3-9900.393 6682-1103 Georg Fischer Relay Module type 9900
Product Description:
The plug-in Relay Module may be installed either before or after the base unit is installed in the wall mount enclosure.
The Relay Module plugs in and attaches with two screws.
1. It may be helpful to use a standard screwdriver to gently pry removable terminals away from the receptacle on the module.
2. Remove terminals from the module receptacle prior to installation.
Features:
- The red LED relay status indicators on the front panel of the 9900 are hardwired to relays 2 and 3.
- Hysteresis and time delay are adjustable for each individual relay.
- Terminals accept 12 to 24 AWG wire.
- Strip 10 to 12 mm (0.4 to 0.5 in.) of insulation from wire tips and tin bare ends to eliminate fraying.
- Insert wire tip or ferrule completely into the terminal and secure with the screw.
- Do not allow any AC leads that may be connected to the internal relays to come in contact with low voltage wiring.
