Hokuyo DMS-GB1-P Infrared Data Transmission

Overview

These devices provide infrared half duplex, 2 way 8-bit data transmission (head on) packets across 1m or 3m. There are NPN and PNP options available.

Operation Benefits
• Indoor/ Outdoor - Indoor
• Range - 1m
• Head On/Side On - Head On
• Communication - Infrared half duplex 2 way data transmission
• Weight - 280g

Technical Information
• Technology - Infrared Data Transmission
• Range - 1m

Product Details

• Technology - Data Transmission
• Range - 1m
• Direction - Head On
• Directional Angle (full angle) - 30º
• Model Type - 8 bit
• Transmission method - Half duplex, two way transmission
• Transmission time - 40ms or less
• Modulation Method - Pulse modulation
• Detection Method - Parity Check
• Projecting Element - Near infrared LED
• Receiving Element - Photo-transistor
• Power Source - 10 to 30VDC
• Current Consumption - 100mA or less
• Input - Contact or Contactless open collector (ON current 2.5mA or more, OFF current 1mA or less)
• Output - NPN Open Collector (30V, 50mA or less)
• Connection - 2m cable, 15 cores, shielded
• Ambient Illuminance - 4,000lux or less (incandescent light)
• Ambient Temperature/humidity - -10 to +50 C 85% RH or less (Without dew, frost)
• Vibration Resistance - Double amplitude 1.5mm, 10 to 55Hz, each 2 hour in X, Y & Z directions
• Impact Resistance - 500 m/s2, each 10 time in X, Y & Z directions
• Protective Structure - IP64 (IEC standards)
• Case Material - Polycarbonate
• Weight - Approx. 280g (excluding cable)
• Version with Noise Filter - DMS-GB1-E70

Related Product Recommendation:

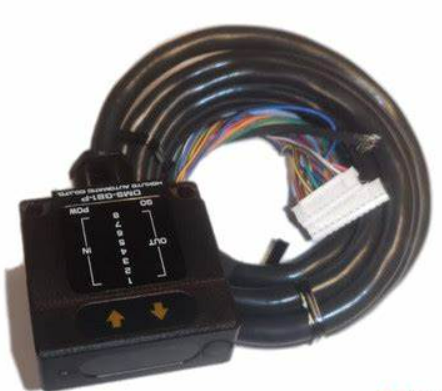

Hokuyo DMS-GB1-P Infrared Data Transmission Images
