LMS511-10100 Sick PRO LMS5xx 2D LIDAR SENSORS part no 1046135

Name: LMS51110100 Sick PRO LMS5xx 2D LIDAR SENSORS part no 1046135
Brand: Sick
Price: 1 USD

Buy cheap LMS511-10100 Sick PRO LMS5xx 2D LIDAR SENSORS part no 1046135 product

Brand Name : Sick

Model Number : LMS511-10100

Certification : CE

Place of Origin : germany

MOQ : 1

Price : variable

Payment Terms : T/T

Supply Ability : 30PCS/WEEKS

Delivery Time : 3-5DAYS

Packaging Details : 160 mm x 155 mm x 185 mm

part no : 1046135

Variant : PRO

Application : Outdoor

Resolution power : Standard Resolution

Light source : Infrared (905 nm, ± 10 nm)

Working range : 0.2 m ... 80 m

Measurement accuracy : ± 24 mm

Weight : 3.7kg

Contact Now

Described product:

LMS5xxdataSheet_LMS511-10100-PRO_1046135_en.pdf

Manufacturer SICK AG Erwin-Sick-Str. 1 79183 Waldkirch Germany Copyright This work is protected by copyright. Any rights derived from the copyright shall be reserved for SICK AG. Reproduction of this document or parts of this document is only permissible within the limits of the legal determination of Copyright Law. Any modification, expurgation or translation of this document is prohibited without the express written permission of SICK AG. © SICK AG. All rights reserved. Original document This document is an original document of SICK AG. The LMS5xx laser measurement sensors are certified according to UL 60950-1:2007. Only vaild when marked on the type plate.

These operating instructions apply to the following variants:
LMS5xx variant Resolution

LMS511-22100 Heavy Duty Outdoor High Resolution (HR)
LMS531-10100 PRO Security Outdoor Standard Resolution (SR)
LMS531-11100 Lite Security Outdoor Standard Resolution (SR)
LMS581-10100 PRO Outdoor Standard Resolution (SR)
LMS581-20100 PRO Outdoor High Resolution (HR)

LMS511-10100 Sick PRO LMS5xx 2D LIDAR SENSORS part no 1046135

Features
Variant PRO
Application Outdoor
Resolution power Standard Resolution
Light source Infrared (905 nm, ± 10 nm)
Laser class 1 (EN/IEC 60825-1:2014 (Ed.3), EN/IEC 60825-1:2007 (Ed.2) CAN/CSA-E60825-1:2015-11
(Ed.3))
Aperture angle
Horizontal 190°
Scanning frequency 25 Hz
35 Hz
50 Hz
75 Hz
100 Hz
Angular resolution 0.042°, interlaced
0.083°, interlaced
0.1667°
0.25°
0.333°
0.5°
0.667°
1°
Scan field flatness Scan field flatness combined: ± 0.72°
Typical conical error: 1 sigma value - 0.11° ± 0.1°
Typical tilt: 1 sigma value + 0.15° ± 0.08°
Heating Self-heating with additional integrated heating
Working range 0.2 m ... 80 m
Scanning range
At 10% remission 40 m
Measurement accuracy ± 24 mm
Spot size Divergence: 11.9 mrad
At the viewing window: 13.5 mm

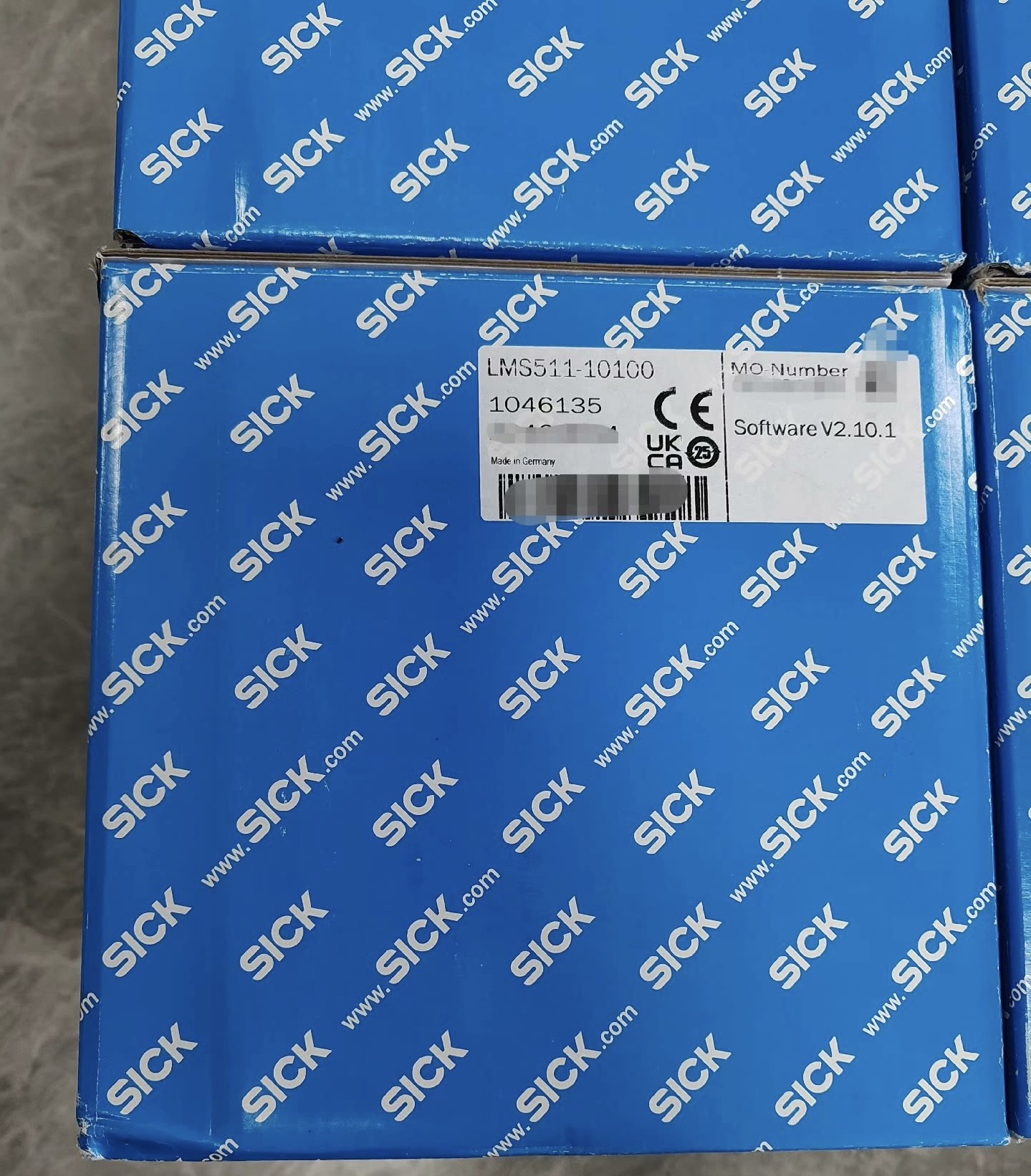

LMS511-10100 Sick PRO LMS5xx 2D LIDAR SENSORS part no 1046135 Images
